Wheel tube machine, wheel groove machine,wheel grooving machine, wheel convex machine, pipe cutting machine, wheel cutting machine.
Furniture, chairs, kitchen utensils, wheelchairs, telescopic poles, crutches, beach chairs, strollers.
100% MADE IN TAIWAN
Product alias：
Tube rolling machine,tube grooving machine, tube shrinking machine, tube groove wheel machine, wheel convex machine, pipe cutting machine, wheel cutting machine,conveyor grooving machine,inner grooving machine, slotting machine
Scope of application :
Tube or pipe assembly products can be a complete or not complete tube rolling grooving and cutting . Its used in the industrial of conveyor, baby stroller, kids tricycle, baby playpen, bicycle, motorbike, automobile, exercise equipment,buffer, deck chair, chaise lounge, furniture, house wares, sanitary wares, recreational facilities, rehabilitation and medical instruments, stainless chopsticks,…etc.
Feature of product:

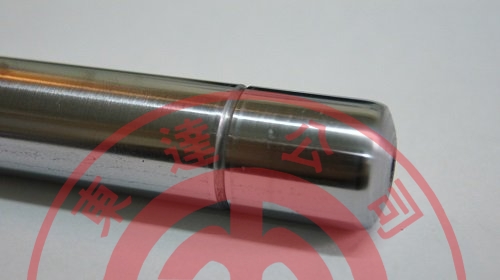

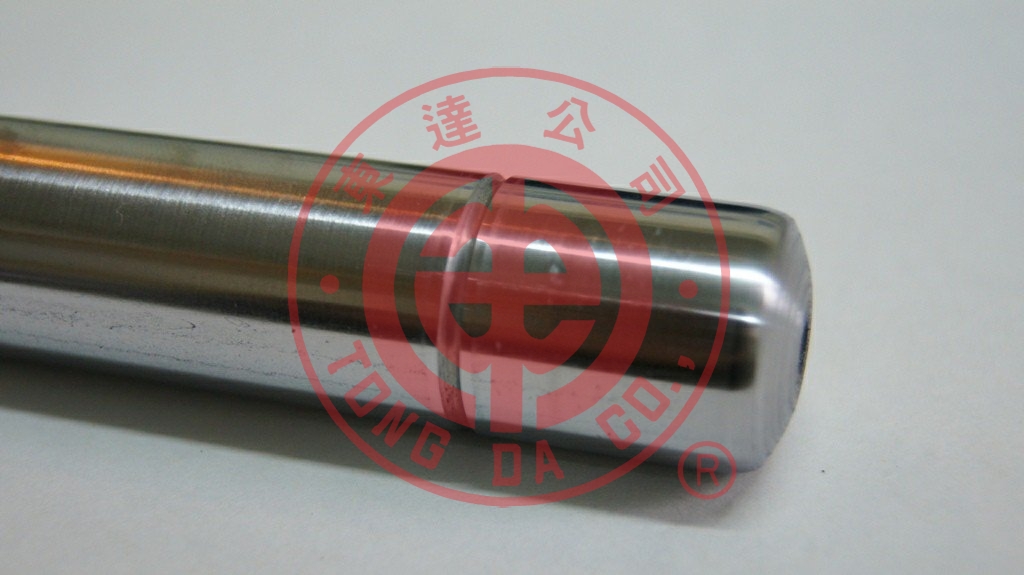

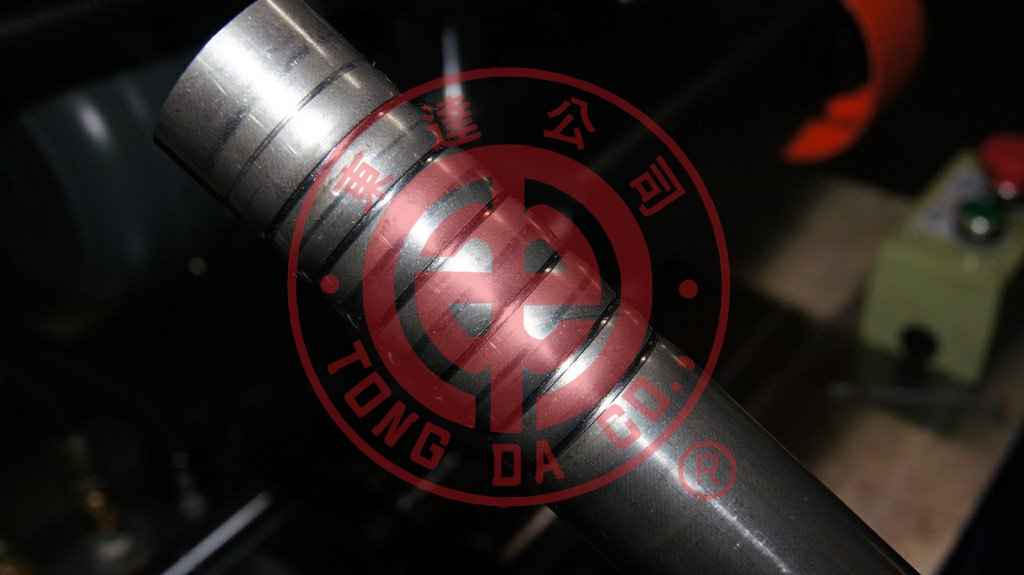

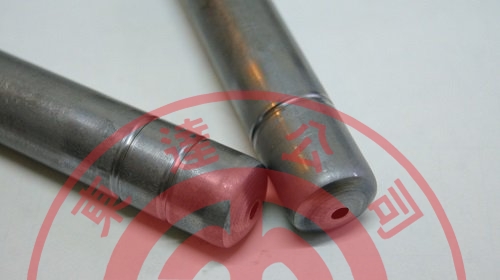

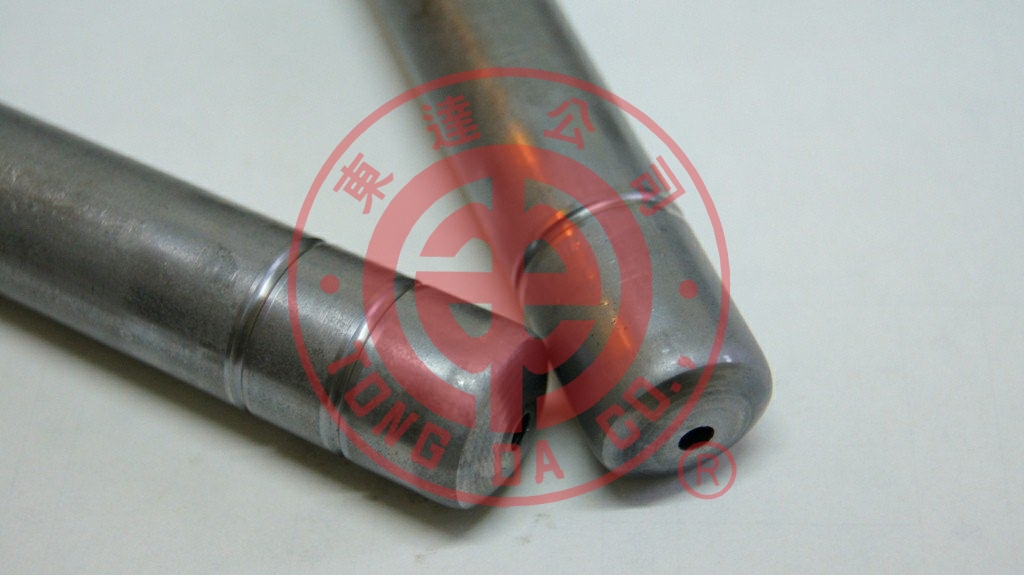

- ※High quality tube grooving on demand with no roller marks.
- ※Variety of metal materials (Steel, stainless steel, copper, aluminum, etc) are adaptable to grooving round tube.
- ※Hydraulic design permits an accurate and steady performance in connection with the groove depth or projection height.
- ※ The special design of the advance and retreat groove mechanism can greatly shorten the processing time of the advance and retreat pipe.
- ※ It is easy to change the groove blade and the groove axis.
- ※Easily-operated, even by an unprofessional person.
- ※ The model is small and beautiful, the chassis is stable and does not take up space.

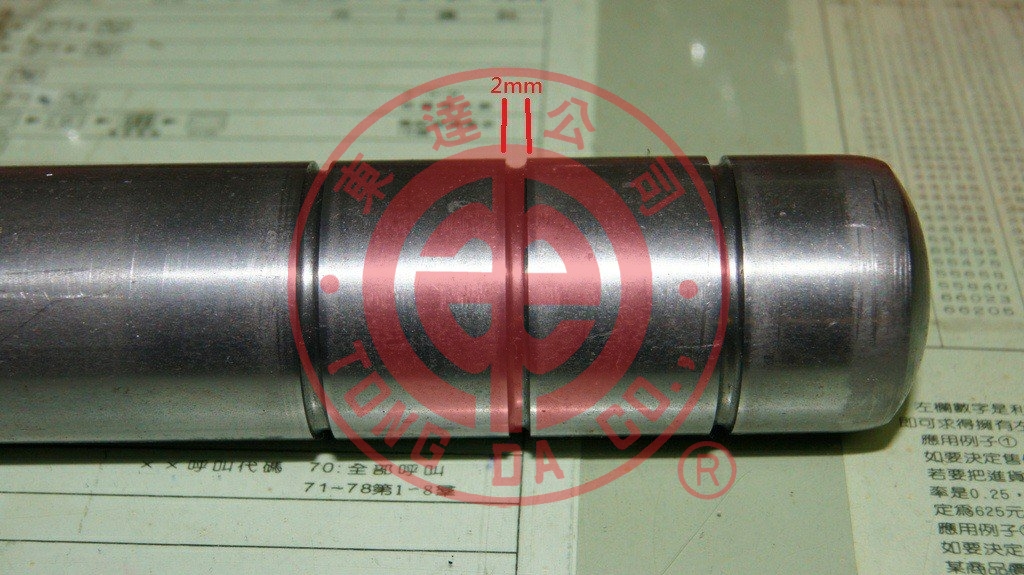

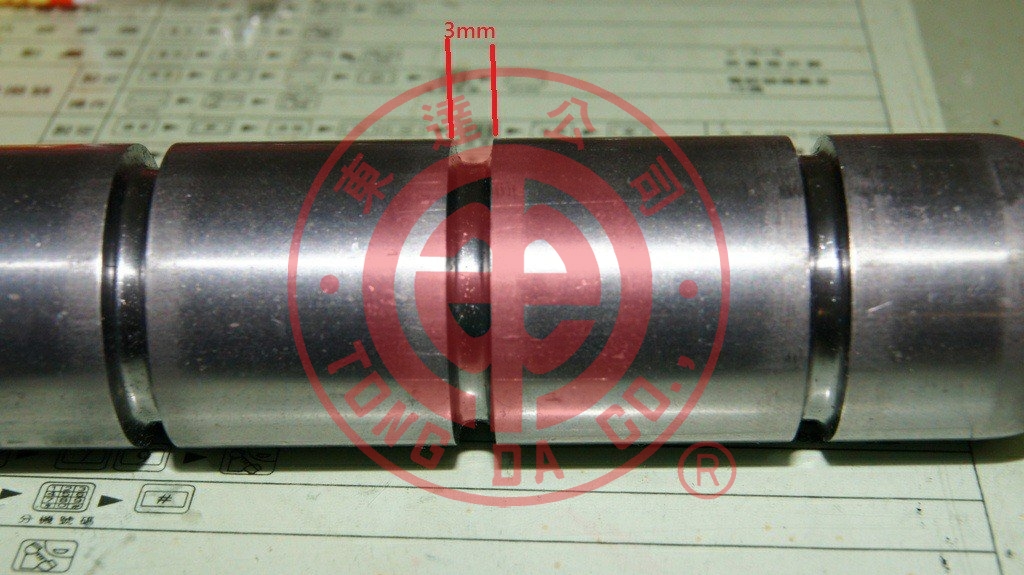

* Adjust the groove width and depth.
* Fast work efficiency and improve performance.
Control Mode: Touch control

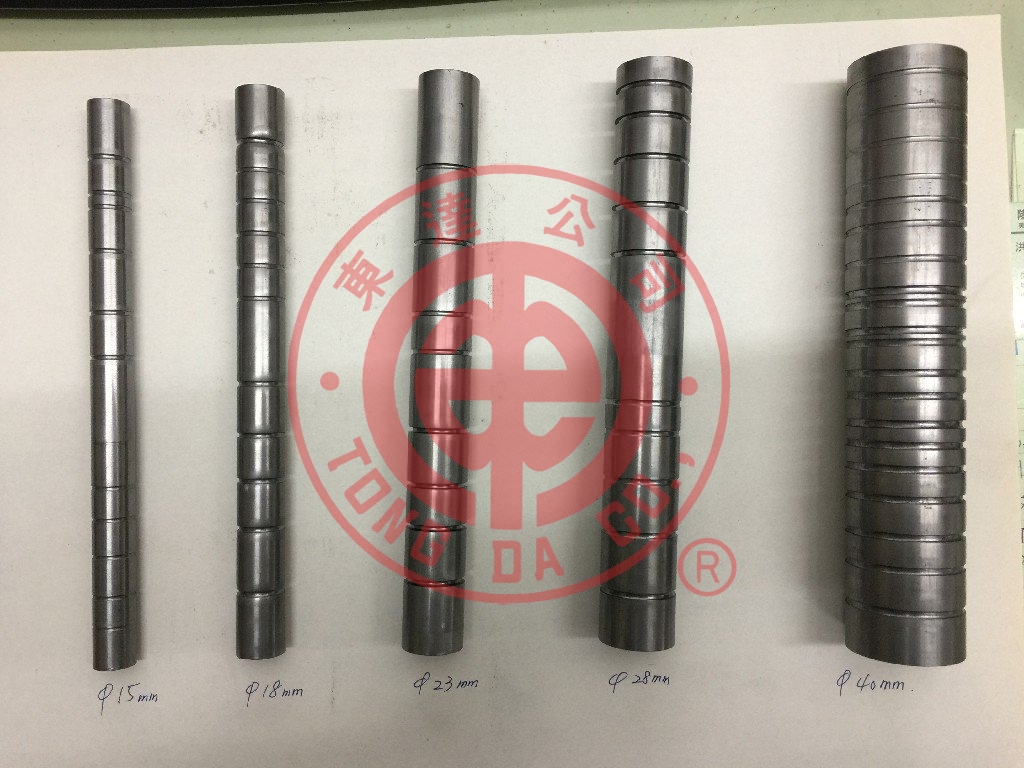

Outside Dia.: 15 ~ 28mm
Tube Thickness: 1.0 ~ 2.0mm
Tube Length: 50 ~ 800mm
Processing Time: about 3 ~ 5secs.
Machine Power: 3KW
Machine Length: 150cm
Machine Width: 70cm
Machine Height: 130cm
Net Weight: 420kg
Gross Weight: 500kg
Speed thin/thick tube cutting.
* Adaptable to cutting round tube of various materials including steel, stainless steel, copper, aluminum, etc.
* Connection with a non-skid rolling assistant cup permits the cutting to be easier, faster and neat. No iron scraps and no wastes.
* Whenever bearing bracket moving up and down, cutter blade always stays at a fixed supporting point between special steel wheels so as to make full use of its highest performance and accuracy.
* Easily-operated, even by an unprofessional person. Cutter blade can be sharpened by client himself to keep cost down.
* Compact design, nice looking, stable base and space-saving.
